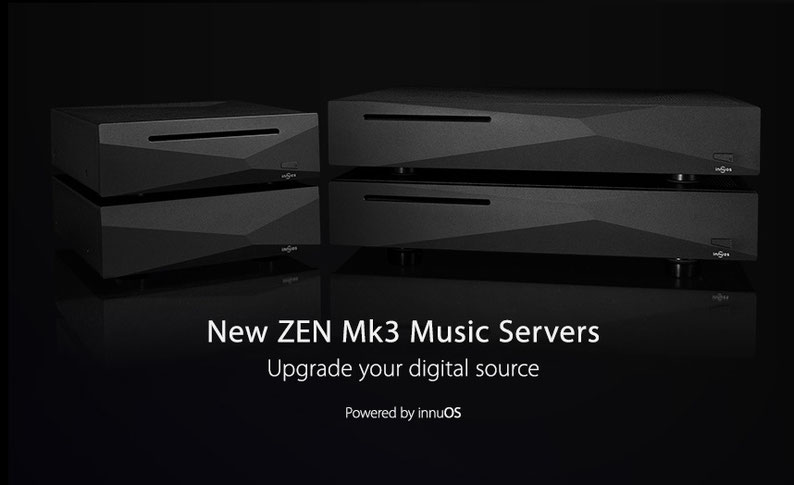

The new ZEN Mk3 Music Server Series brings in exciting new improvements in sound quality based on trickle-down technology from our award-winning ZENith SE:
AUDIO OUTPUTS
Digital Output USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA Coaxial S/PDIF up to 24bit/192KHz Optical S/PDIF up to 24bit/96KHz Analogue Output RCA Analogue up to 24bit/192KHz
CONNECTIVITY
Ethernet 2 x rear panel RJ45 – Bridged Gigabit Ethernet USB 4x USB 3.0
FORMATS
CD Formats Red Book Disc Compatibility CD, CD-R, CD-RW Audio format for stored CDs FLAC (zero compression), WAV Audio Formats Supported for streaming and playing WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA on supported DACs
SAMPLE RATES
Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs Bit Depths 16bit, 24bit, 32bit
USER CONTROL INTERFACES
Web Interface Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers Mobile App for iPhone/iPad, Android and Windows 10
HARDWARE
CD/DVD drive TEAC Slot-loading drive Hard Drive 1TB WD Red HDD CPU Intel Quad Core N4200 Memory 4GB DDR3
STREAMING AND CD STORAGE
UPnP/DLNA Integrated UPnP Server Streaming Services Qobuz, Spotify Connect, Tidal, Internet Radio Roon Compatibility Roon Core and Roon Bridge Average CD Storage Time 5 minutes CD Metadata FreeDB, MusicBrainz, Discogs, GD3 Compatible Music Systems Sonos Multi-room Wireless Music System DLNA/UPnP compatible streamers USB DACs complying to USB Audio Class 2 USB DACs supporting DSD over DoP protocol Selected USB DACs supporting Native DSD
REQUIREMENTS
Network Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates Network router with at least one available ethernet port Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal Recommended App (USB Connection Only) iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)
POWER
Mains Supply Low ripple Power Adapter, 12V 5A, CEC Level V efficiency Power Consumption 10W when idle, 15W peak
PHYSICAL
Dimensions 74 x 214 x 240 mm (H x W x D) Weight 4,5 Kg In the box Innuos ZENmini Mk3 1TB Music Server AC/DC Power Adapter Mains Cable 2m Ethernet Cable Getting Started leaflet
999,00 €
Inclusa IVA . Si applicano le spese di spedizione .
Spedizione gratuita nei seguenti Paesi: Mostra di più Mostra meno
Optional Linear Power Supply upgrade for improved sound quality in matching chassis.
Backwards compatible with the ZENmini MkII.
549,00 €
Inclusa IVA . Si applicano le spese di spedizione .
Spedizione gratuita nei seguenti Paesi: Mostra di più Mostra meno
AUDIO OUTPUTS
Digital Output USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA Dedicated Ethernet Streamer Port
CONNECTIVITY
Ethernet 2 x rear panel RJ45 – Bridged Gigabit Ethernet USB 1x USB 2.0 (DAC), 1x USB 3.0 (Backup)
FORMATS
CD Formats Red Book Disc Compatibility CD, CD-R, CD-RW Audio format for stored CDs FLAC (zero compression), WAV Audio Formats Supported for streaming and playing WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA (with supported DACs)
SAMPLE RATES
Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , up to DSD128 via DoP, Native DSD on selected DACs Bit Depths 16bit, 24bit, 32bit
USER CONTROL INTERFACES
Web Interface Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers Mobile App for iPhone/iPad, Android and Windows 10
HARDWARE
CD/DVD drive TEAC Slot-loading drive Hard Drive 1TB WD Red HDD CPU Intel Quad Core N4200 Memory 8GB DDR3 Low-Voltage RAM (4GB Dedicated for RAM Playback)
STREAMING AND CD STORAGE
UPnP/DLNA Integrated UPnP Server Streaming Services Qobuz, Spotify Connect, Tidal, Internet Radio Roon Compatibility Roon Core and Roon Bridge Average CD Storage Time 5 minutes CD Metadata FreeDB, MusicBrainz, Discogs, GD3 Compatible Music Systems Sonos Multi-room Wireless Music System DLNA/UPnP compatible devices USB DACs complying to USB Audio Class 2 USB DACs supporting DSD over DoP protocol Selected USB DACs supporting Native DSD
REQUIREMENTS
Network Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates Network router with at least one available ethernet port Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal Recommended App (USB Connection Only) iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)
POWER
Mains Supply 230V AC / 115V AC - Internal Dual-Linear Power Supply Power Consumption 12W when idle, 15W peak
PHYSICAL
Dimensions 70 x 420 x 320 mm (H x W x D) Weight 9 Kg In the box Innuos ZEN Mk3 1TB Music Server Mains Cable 2m Ethernet Cable Getting Started leaflet
2.099,00 €
Inclusa IVA . Si applicano le spese di spedizione .
Spedizione gratuita nei seguenti Paesi: Mostra di più Mostra meno
AUDIO OUTPUTS
Digital Output USB 2.0 supporting USB Audio Class 2, DoP, Native DSD and MQA Dedicated Ethernet Streamer Port
CONNECTIVITY
Ethernet 2 x rear panel RJ45 – Bridged Gigabit Ethernet USB 1x USB 2.0 (DAC), 1x USB 3.0 (Backup)
FORMATS
CD Formats Red Book Disc Compatibility CD, CD-R, CD-RW Audio format for stored CDs FLAC (zero compression), WAV Audio Formats Supported for streaming and playing WAV, AIFF, FLAC, ALAC, AAC, MP3, MQA (with supported DACs)
SAMPLE RATES
Sample Rates 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4KHz. 192kHz, 352.8KHz, 384KHz , DSD64, DSD128, Native DSD up to DSD512 on selected DACs Bit Depths 16bit, 24bit, 32bit
USER CONTROL INTERFACES
Web Interface Web Browsers from iOS, Android (4.0 and up) or up-to-date Windows and OS X browsers Mobile App for iPhone/iPad, Android and Windows 10
HARDWARE
CD/DVD drive TEAC Slot-loading drive Hard Drive 1TB SSD with Vibration and EMI treatment CPU Intel Quad Core N4200 Memory 8GB DDR3 Low-Voltage RAM (4GB Dedicated for RAM Playback)
STREAMING AND CD STORAGE
UPnP/DLNA Integrated UPnP Server Streaming Services Qobuz, Spotify Connect, Tidal, Internet Radio Roon Compatibility Roon Core and Roon Bridge Average CD Storage Time 5 minutes CD Metadata FreeDB, MusicBrainz, Discogs, GD3 Compatible Music Systems Sonos Multi-room Wireless Music System DLNA/UPnP compatible devices USB DACs complying to USB Audio Class 2 USB DACs supporting DSD over DoP protocol Selected USB DACs supporting Native DSD
REQUIREMENTS
Network Internet connection to access album metadata when storing CDs, Internet Radio, Streaming Services and software updates Network router with at least one available ethernet port Premium subscription required for some streaming services such as Spotify, Qobuz and Tidal Recommended App (USB Connection Only) iPeng 9 (iOS), OrangeSqueeze (Android), Squeeze Control (Windows 10)
POWER
Mains Supply 230V AC / 115V AC - Internal Dual-Linear Power Supply Power Consumption 12W when idle, 15W peak
PHYSICAL
Dimensions 70 x 420 x 320 mm (H x W x D) Weight 9 Kg In the box Innuos ZENith Mk3 1TB Music Server Mains Cable 2m Ethernet Cable Getting Started leaflet
3.399,00 €
Inclusa IVA . Si applicano le spese di spedizione .
Spedizione gratuita nei seguenti Paesi: Mostra di più Mostra meno
